HDPE-Lined Steel Systems
Composite pipeline systems combining steel structural strength with HDPE chemical and abrasion resistance.
The Best of Both Materials
HDPE-lined steel systems combine the structural integrity and pressure capacity of steel pipe with the chemical resistance and smooth bore of HDPE. The steel outer provides mechanical strength while the HDPE inner liner protects against corrosion, chemical attack and moderate abrasion.
WPTS fabricates HDPE-lined steel systems in-house, ensuring precise liner insertion, secure end terminations and reliable flange or weld connections. These systems are the solution of choice for moderately abrasive or chemically aggressive pipeline applications in mining and industry.
HDPE-lined steel imagery
How HDPE-Lined Steel Works
Steel Carrier Pipe
Steel outer pipe provides structural strength, pressure containment and mechanical protection.

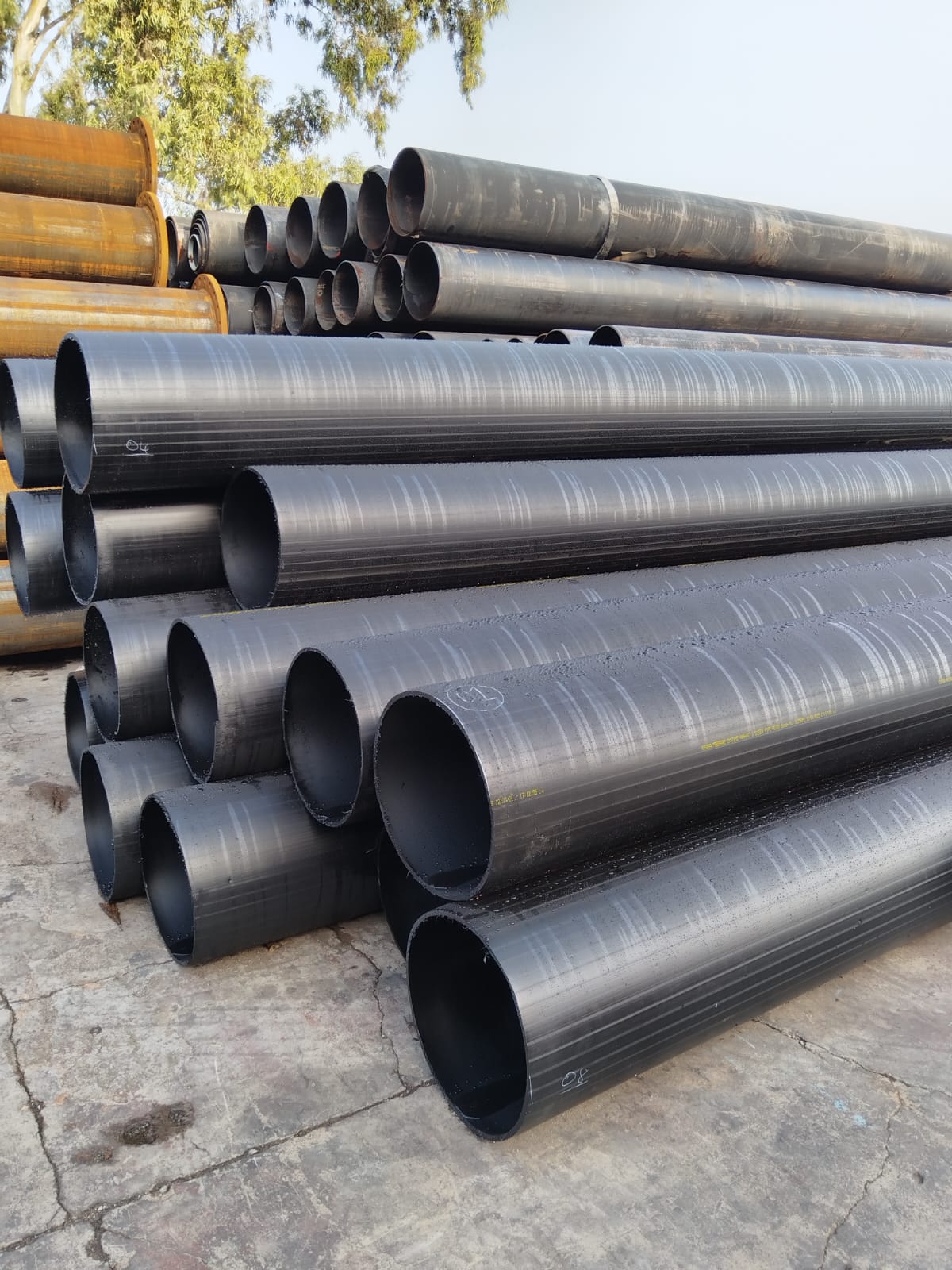

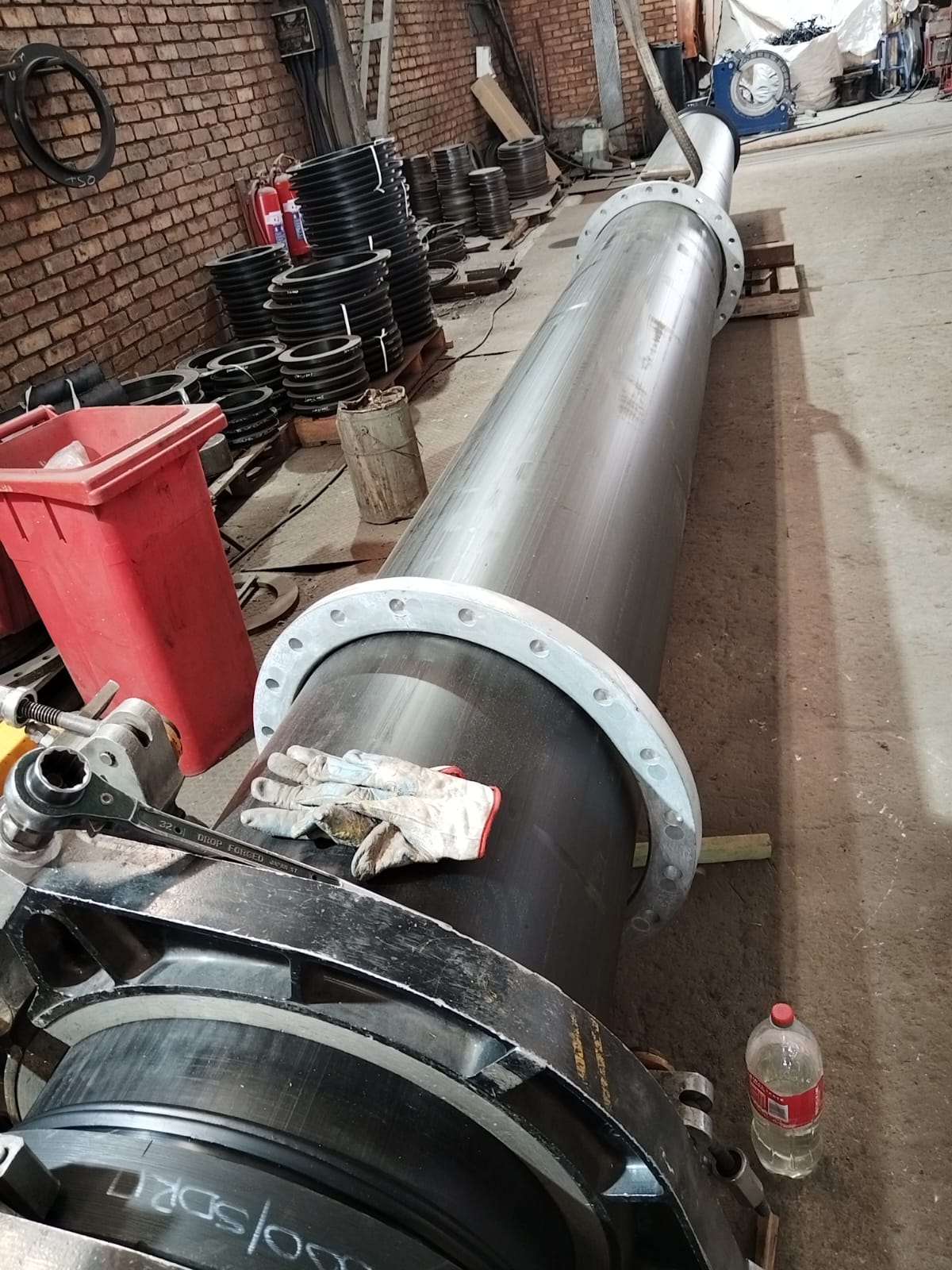

HDPE Liner Insertion
Precision-manufactured HDPE liner inserted into the steel carrier and secured at each end.

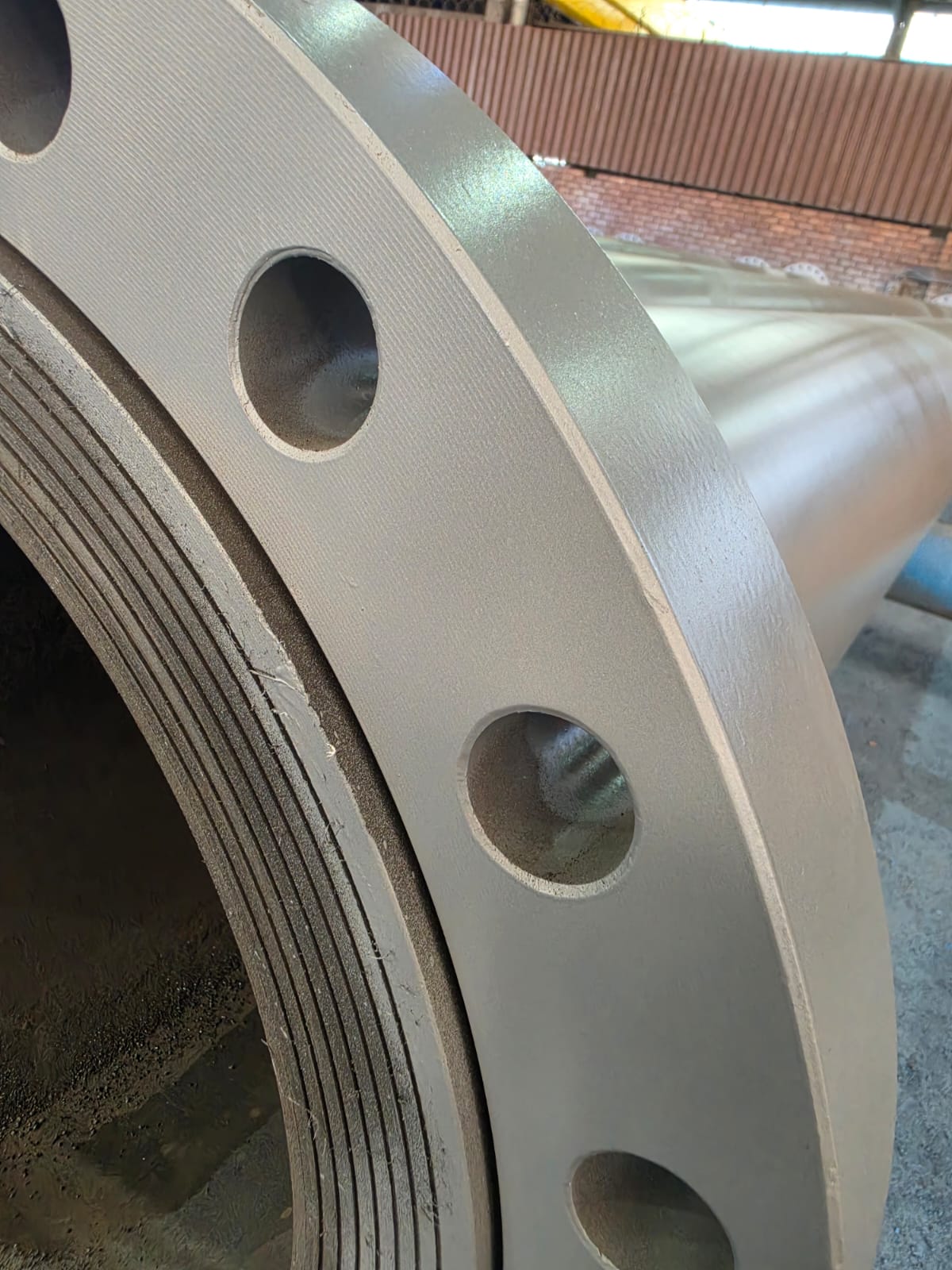

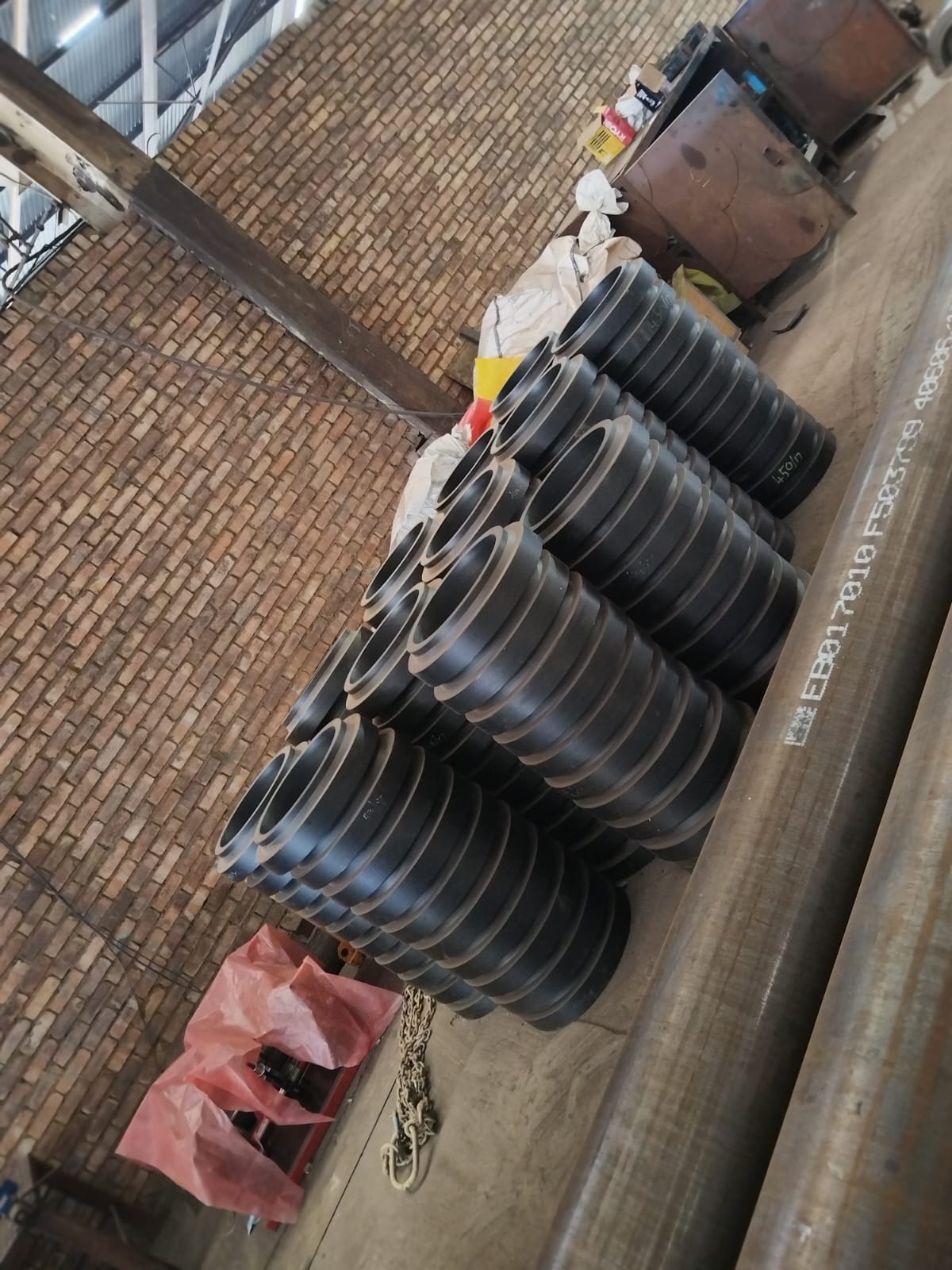

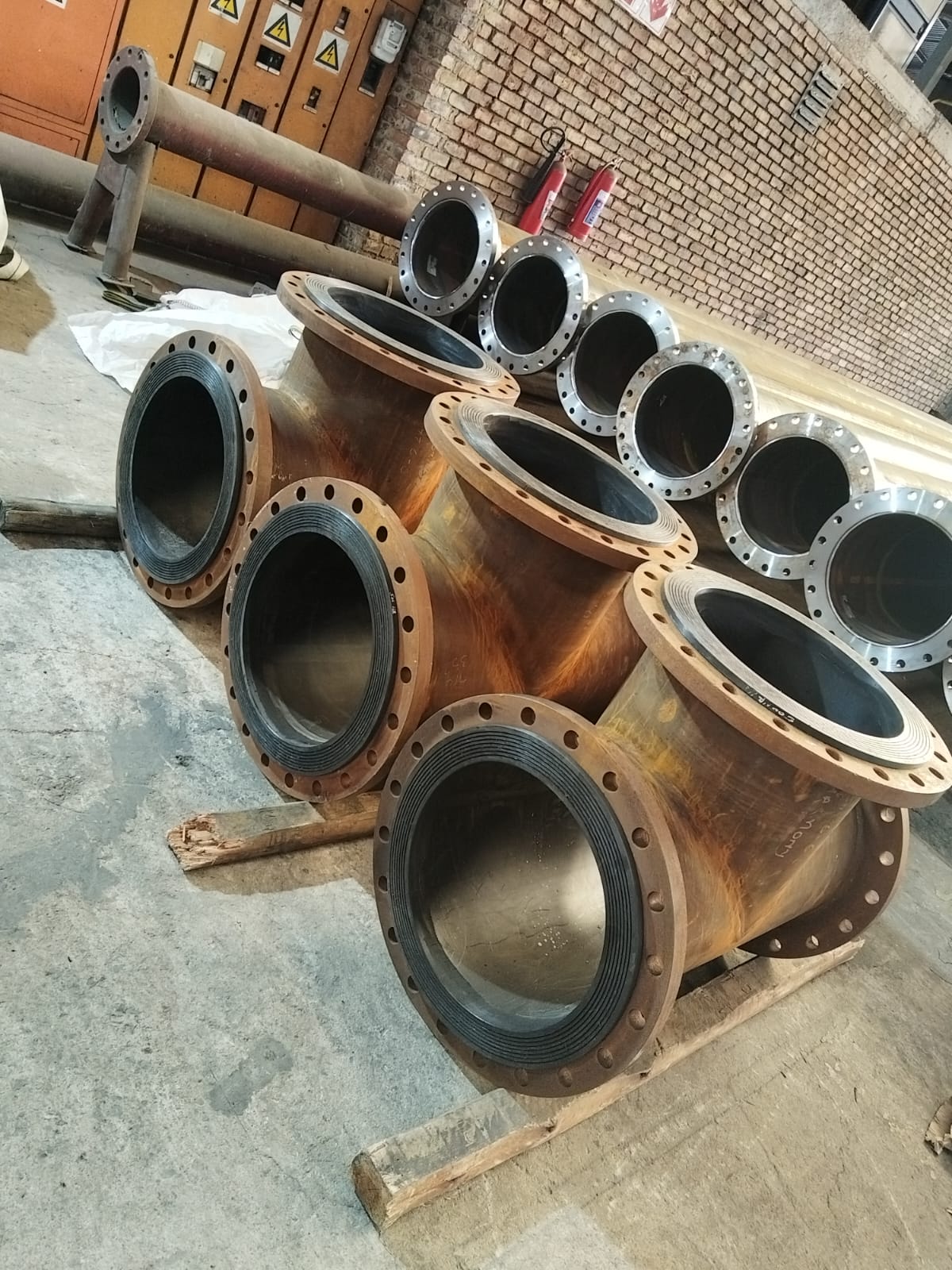

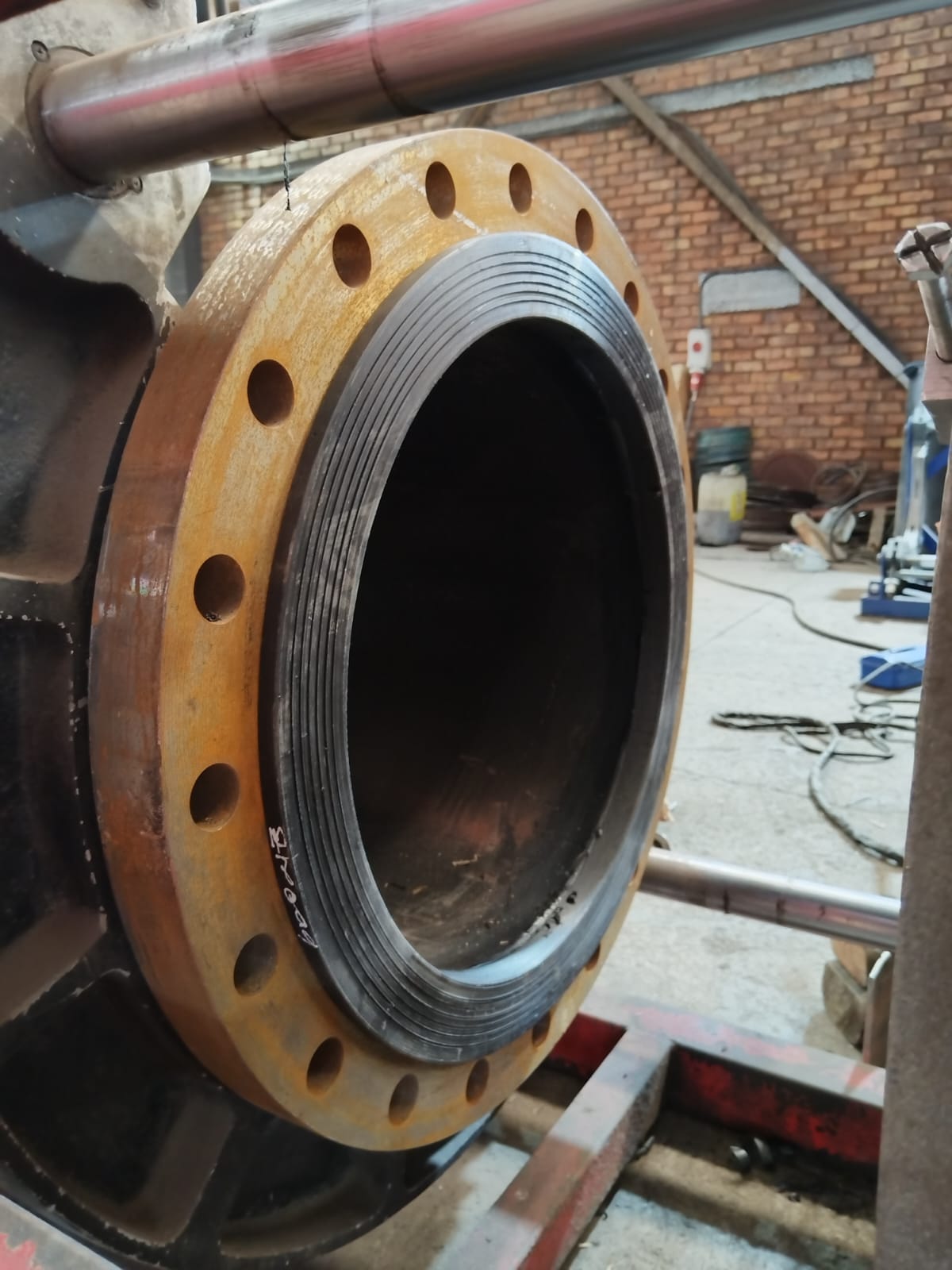

End Terminations
Flanged or stub-end terminations create leak-tight connections between lined sections.

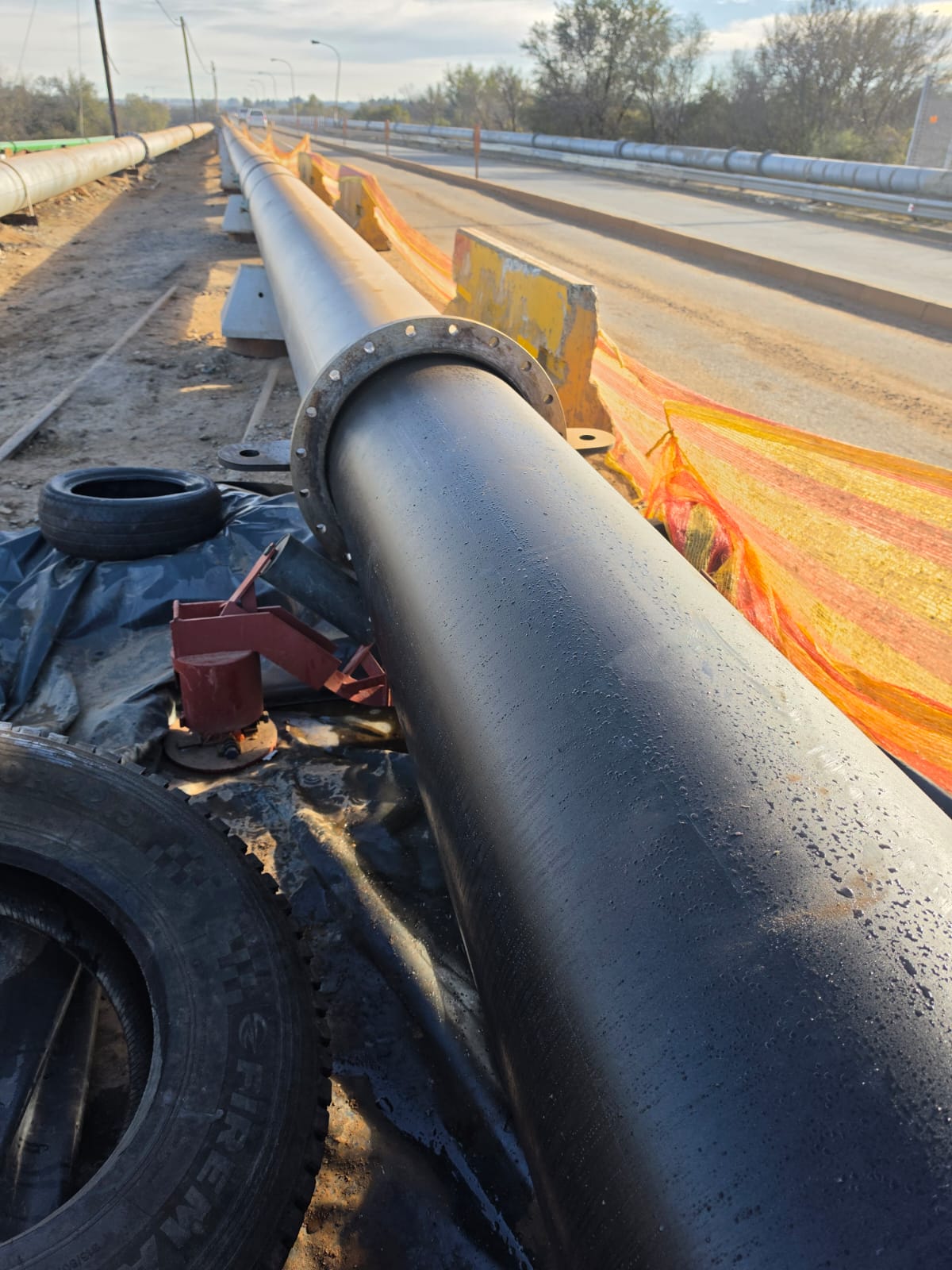

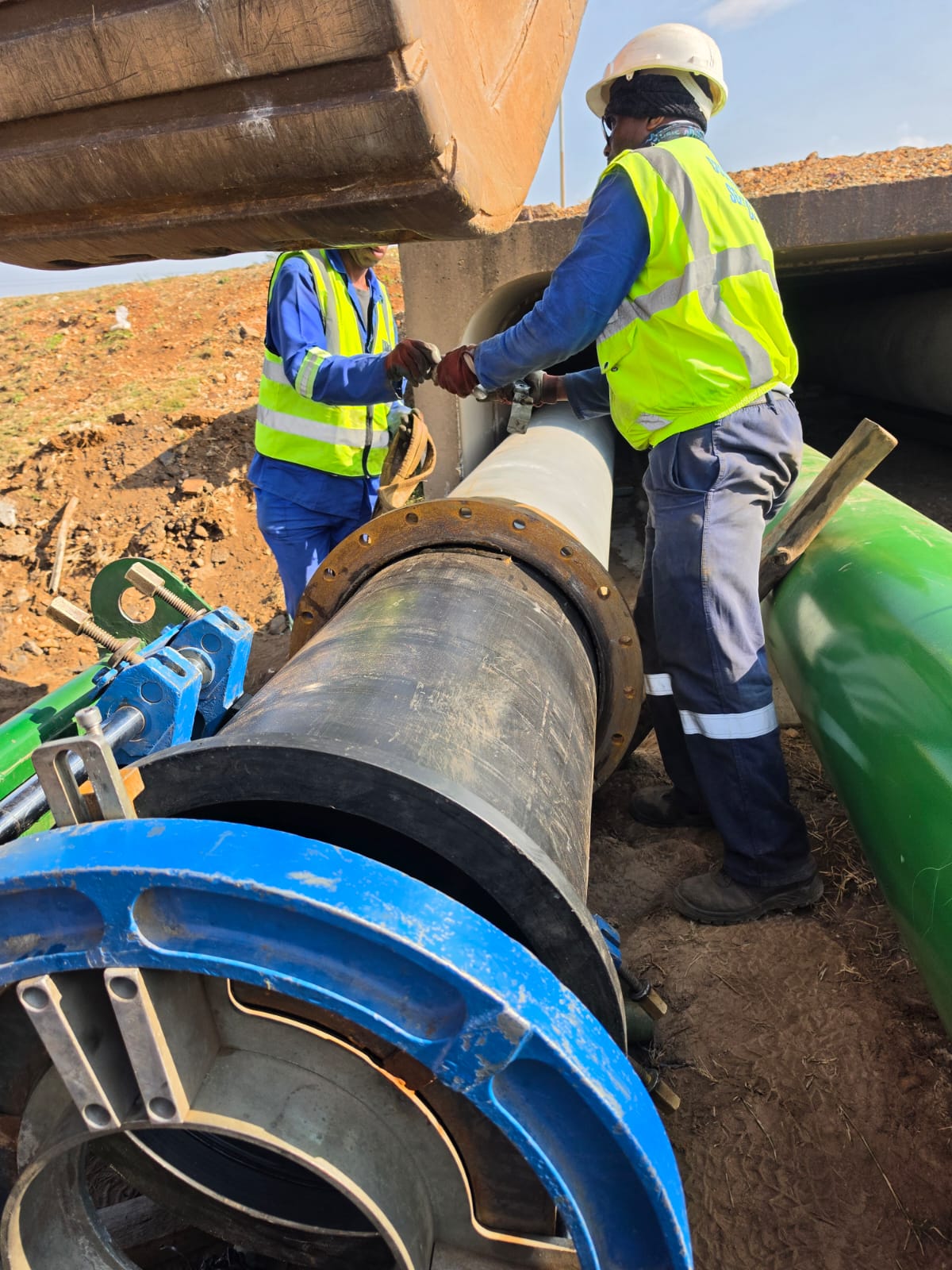

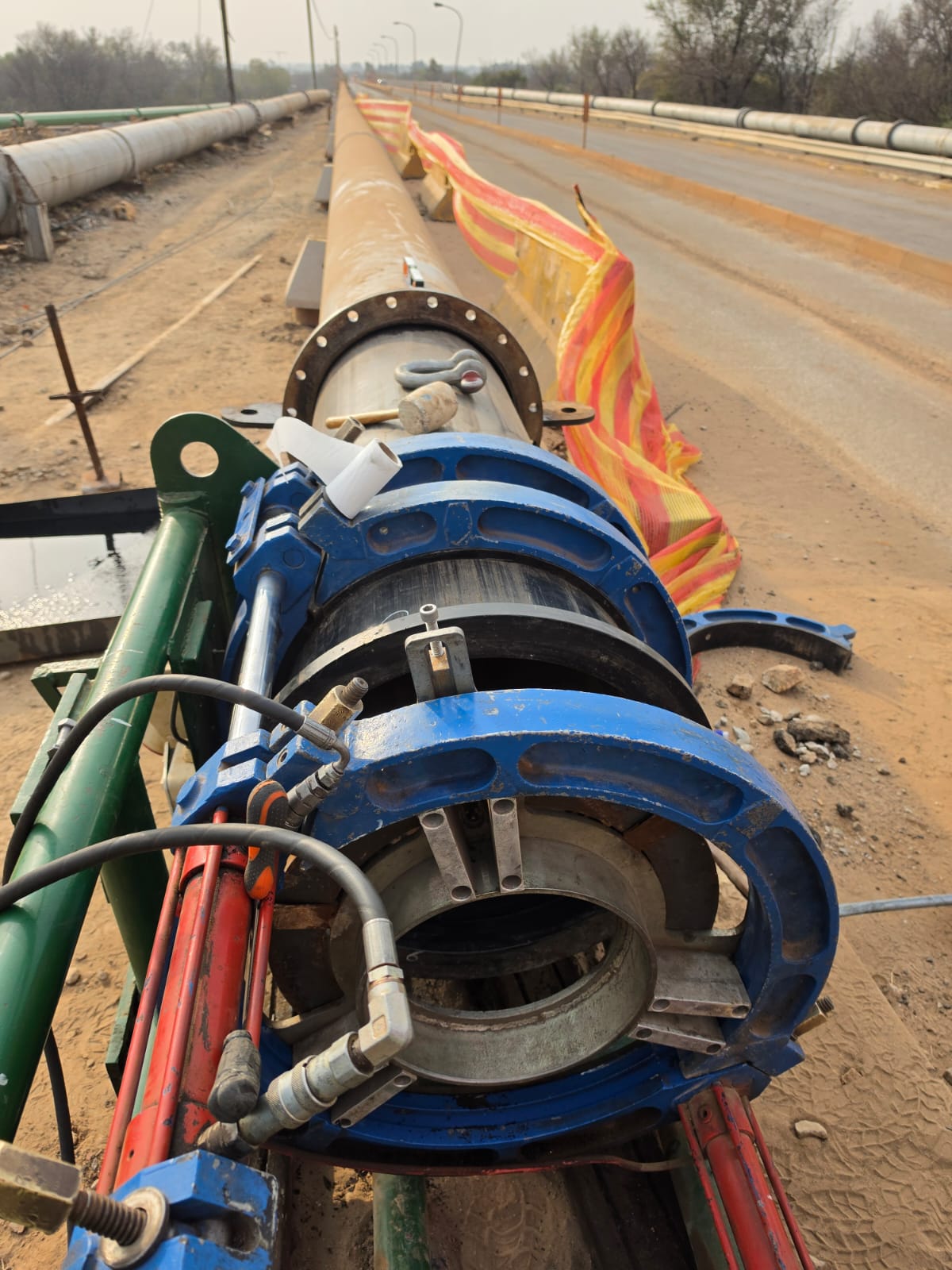

Installation
Complete system installed on-site with flanged or welded connections between spools.
Ideal For
- Corrosive mining process water
- Moderately abrasive slurries
- Acid mine drainage
- Chemical transfer lines
- High-pressure applications requiring corrosion protection
- Replacement of corroded steel pipelines
Key Benefits
- Steel strength + HDPE chemical resistance
- Smooth bore — improved flow rates
- No internal corrosion — extended service life
- Lighter than solid steel alternatives
- Resistant to scaling and biological growth
- Cost-effective vs. exotic alloy pipes
Need HDPE-Lined Steel Pipelines?
Contact WPTS for composite pipeline solutions tailored to your application.
